HERITAGE CARBON MILL: PRODUCTION AND MILLING OF CARBON FIBER ITEMS

DISCLAIMER: DO NOT ATTEMPT THIS WORK.

WWW.CARBONFIBERARCHITECTURE.COM &

BENJAMIN S. EMANUELSON ASSOC. AIA TO

NOT BE HELD RESPONSIBLE FOR INJURIES OR

HEALTH PROBLEMS ASSOCIATED WITH

CARBON FIBER PROCESSES. RESPIRATORY

PROTECTION, VENTILATION, & EYE & SKIN

PROTECTION ISSUES TO BE PROPERLY

ACCOUNTED FOR DURING ALL PROCESSES

SIMILAR TO THE ONES SHOWN.

In order to properly form the carbon composite shape,

it was deemed necessary that a formwork be created.

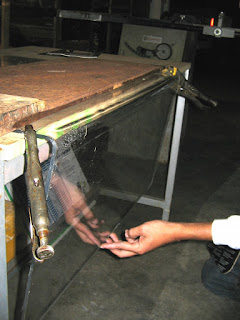

This formwork was constructed of 1/4" plexi-glass, and

was shaped using a rigged "heat-brake." (Shown)

The plexi-glass was held in place and heated regularly

across a concentrated axis until flexibility was achieved. (Shown)

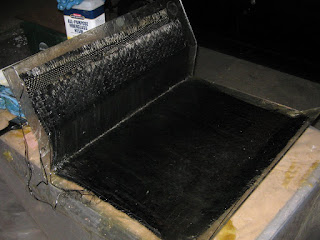

Below: The Carbon Fiber primary structural element.

The initial layer was a bi-directional weaving, however the

central-most layers were "uni-directional." The uni-directional

carbon fiber mat resin impregnation is a noticeable challenge

when compared to the bi-directional surface mat.

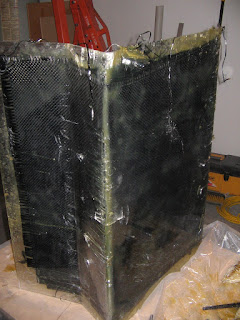

A second layup, on a second plexi-glass form was also

deemed necessary. (Below)

As the resin heat-cures itself, pushing, pulling,

expansion, and contraction were to take place. This

caused a considerable amount of damage to the plexi

form. It was decided that a better approach would

be to allow initial layers to cool and cure, as they

would be able to absorb many of the inherent stresses.

(Below)

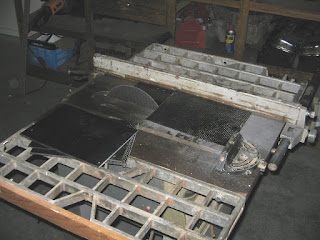

Machining and shaping of cured items was made possible by

using a metal blade (containing carbon fiber itself) within a standard

table saw. Cutting of the material, which is structurally stronger and

lighter than steel, was interestingly much more easy to cut, and

more forgiving to work with, when compared to steel or aluminum.

These are just a few of the related exercises and issues related

to the inherent processes of carbon fiber composite materials.
